Tamglass 2.4×4.8

Enquire

Make : Tamglass

Model : 2.4 x 4.8

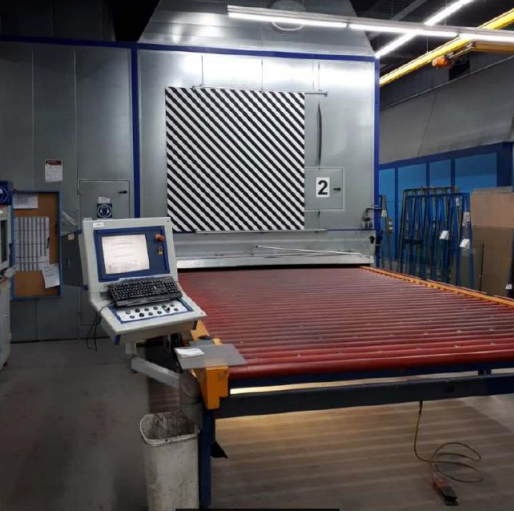

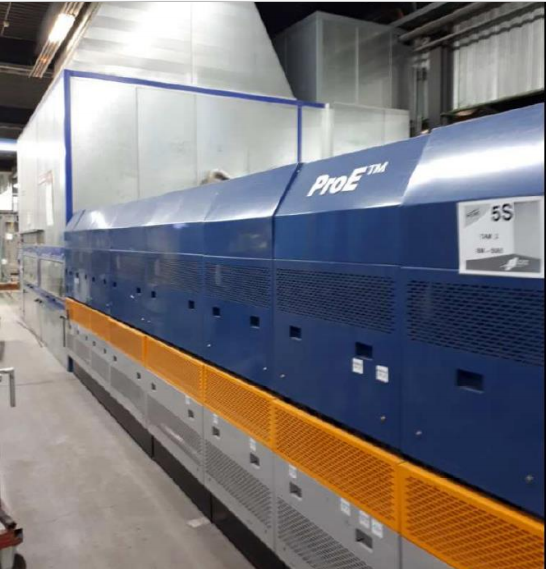

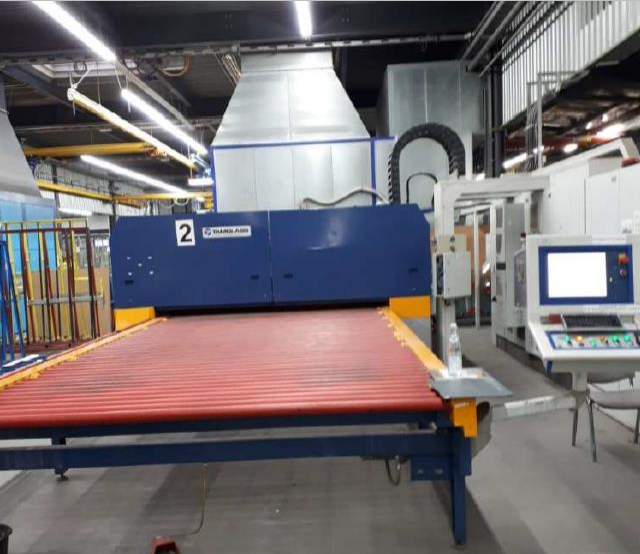

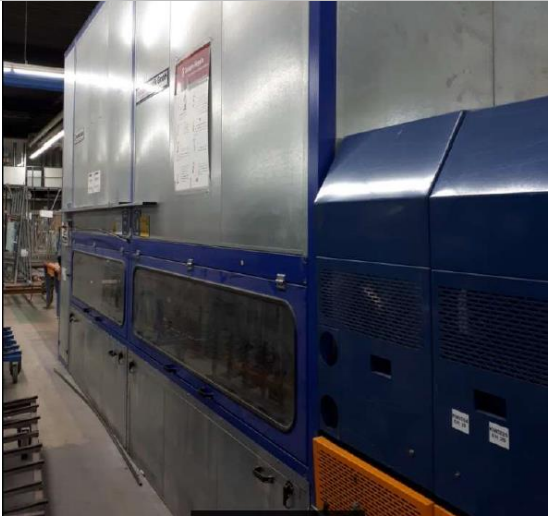

Description : Tamglass 2.4 x 4.8 Toughening Furnance (HTF ProE – 2448 – ADS – R)

maximum glass dimensions: 2.400 x 4.800 mm
glass thicknesses: 3 mm to 19 mm
for 3 mm boost-function: with compressed air
operation terminal: at the loading-bed and unloading-area
operating software: TAMGLAS ProEGui version 4.20.59; Windows 2000
electrical transformer: 1.600 kVA
energy consumption: approximately 8,6 kWh/m² (KPI in 2018)
heating elements: main heating elements are length oriented (90° to rolls) at the beginning there are 4 elements and at the end of the loading area are 2 heating zones which are side by side oriented
(parallel to the rolls)
Available for viewing by appointment only

Age : 2006

Price : Price on Application
